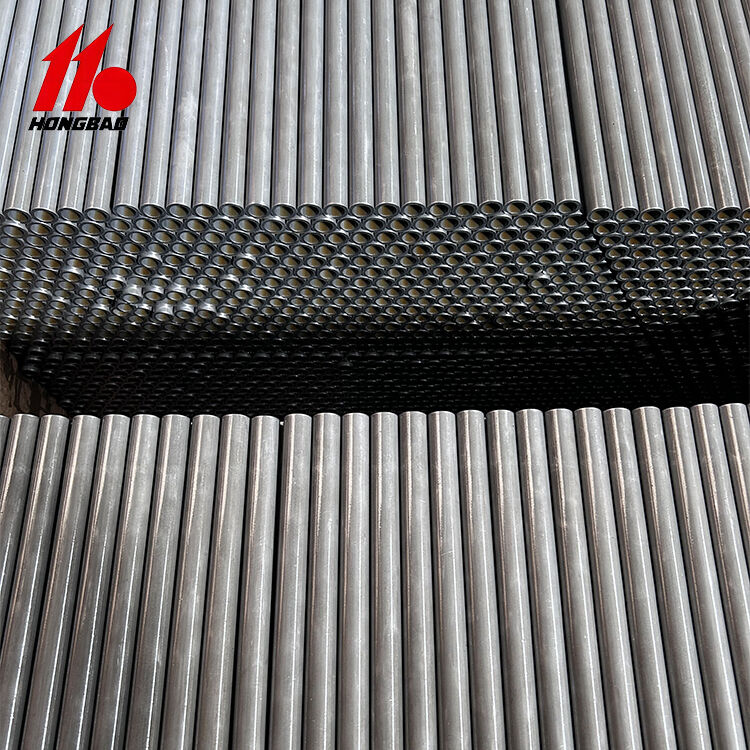

Precision E355 Carbon Steel Tube EN10305-2 Standard Cold Drawn Process Thin-Wall Design for Automotive Systems

Manufactured in strict compliance with the EN10305-2 standard, this precision tube utilizes E355 grade carbon steel known for its excellent weldability and high yield strength. Through the cold drawing process, the tube achieves superior dimensional accuracy and a smooth surface finish, while maintaining a thin-wall design to reduce vehicle weight. It is widely used in automotive chassis systems, seat frames, shock absorbers, and stabilizer bars.

• Material: E355
• Other Available Materials: E155, E195, E235, E275
• Outer Diameter Range: 10-50mm
• Wall Thickness Range: 1.5-8mm
• t/D Ratio: ≥ 0.2 (Normal: t/D=0.1)
• Standard: EN10305-2
• Process: Cold Drawn, Cold Rolling

• +C: No heat treatment after the final cold drawing process
• +LC: After the final heat treatment there is a suitable drawing pass
• +SR: After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
• +A: After the final cold drawing process the tubes are annealed in a controlled atmosphere
• +N: After the final cold drawing operation the tubes are normalized in a controlled atmosphere

• Better shape and dimensional consistency
• Improved quality surface finish
• Tight eccentricity and wall thickness tolerances
• Enhanced safety performance
• Good toughness at low temperatures
• 90% of cylinders in the USA market are produced with welded tubes
• Cost-effective fixed lengths

Seaworthy plywood case packaging
